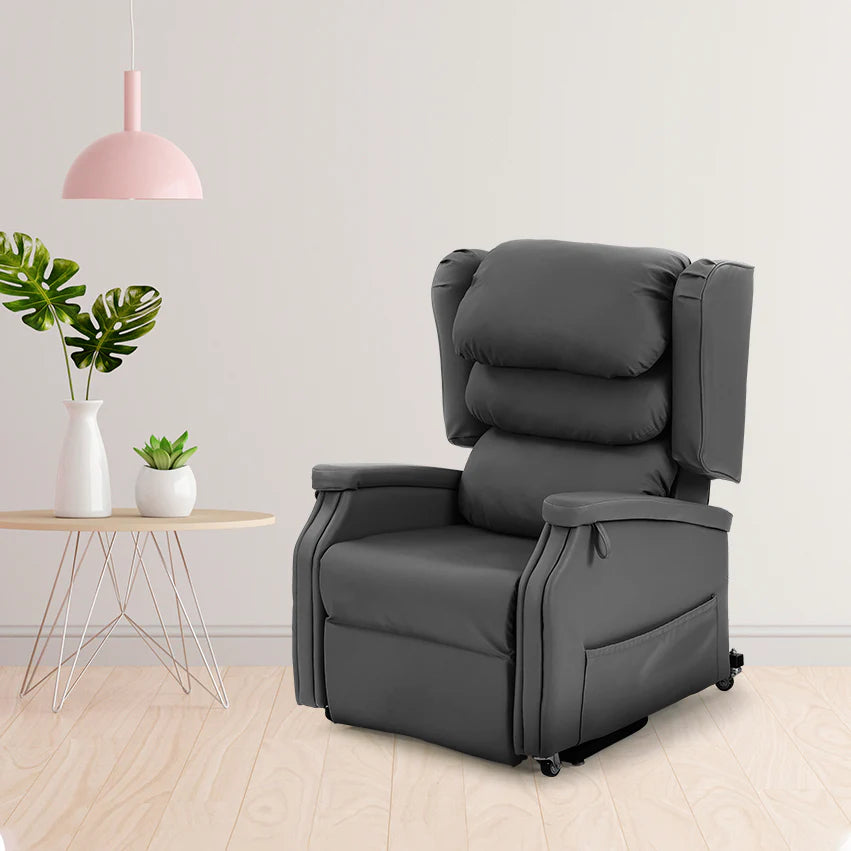

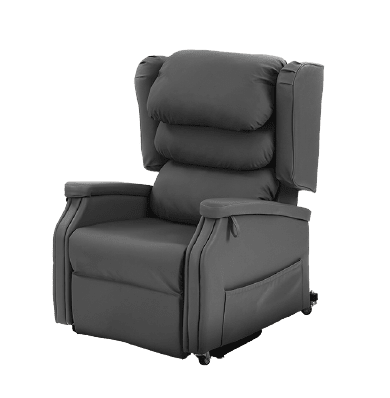

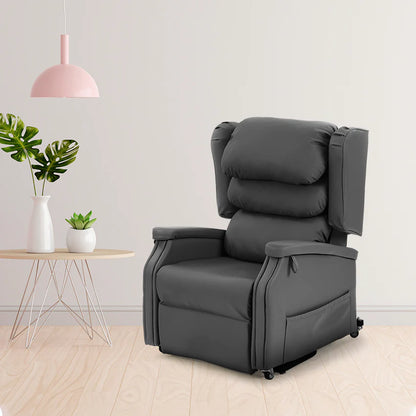

Configura Comfort

The Configura Comfort (Twin Motor) is a versatile electric lift chair designed for those with complex seating needs. With a twin-motor design, it allows the backrest and legrest to be adjusted independently, making it easier to find the right position for comfort and posture.

Its tilt-in-space functionality aids in pressure redistribution, while the lift mechanism assists users in transitioning between sitting and standing positions safely. The chair’s vapour permeable seat and backrest work alongside pressure care seating options to support skin integrity.

A self-supply overlay allows the individual’s existing cushion to be fitted with ease. The depth can be adjusted, and multiple positioning accessories are available for individualised support. The easy-to-use handset and castors ensure simple operation and repositioning.

The black vinyl, beige vinyl and the duratek upholstery options are sleek and easy to maintain, making the chair suitable for a range of care environments.

Available in 4 sizes: Small, Medium, Large and XLarge

Key Features

• Twin motor design – enables independent backrest and legrest adjustment
• Tilt-in-space function – supports pressure redistribution and comfort
• No shear recline – helps maintain pelvic alignment during backrest movement
• Interchangeable backrest options – includes adjustable Velcro pillows for customisable support
• Black vinyl, Beige Vinyl and Duratek upholstery – sleek, durable and easy to maintain
• Vapour permeable seat and backrest – promotes airflow and protects skin integrity
• Self-supply cushion overlay – simplifies fitting of personal seating options
• Integrated depth adjustment – two setting depth adjustment
• Easy-to-use handset – simplifies position changes
• Castors for mobility – enables smooth movement and re-positioning
• Battery backup – ensures operation during power outages
• Available accessories – supports a range of positioning and clinical needs

Specifications

XLarge

• Seat height - 400 mm (16")
• Seat height with 1” Haks - 425 mm (17”)
• Seat height with 2” Haks - 450 mm (18”)
• Seat width - 600 mm (24")
• Seat depth position 1 - 450 mm (18”)
• Seat depth position 2 - 500 mm (20”)
• Armrest height - 180 mm (7.1”)
• Overall width - 900 mm (27.5”)
• Overall height - 1080 mm (42.5”)
• Overall length - 885 mm (34.8”)
• Rise height to front of chair- 510 mm (20.1")
• Total length fully reclined - 1565 mm (61.6”)
• Chair to wall/ furniture - 570 mm (22.4")
• Safe working load - 255 kg
• Chair weight - 79 kg

Large

•      Seat height - 457mm (18")
•      Seat height with haks - 508mm (20")
•      Seat width - 558mm (22")
•      Seat depth position - 508mm (50")
•         Armrest height - 180mm (7")
•         Rise height to front of chair STANDARD - 508mm (20")
•      Rise height to front of chair MEDIUM - 572mm (22.5")
•      Rise height to front of chair FLAT - 711mm (28")
•      Chair to wall/ furniture - 483mm (19")
•       Safe working load - 160kg
•       Back height - 700mm

Medium

• Seat height - 457 mm (18")
• Seat height with 1” Haks - 482 mm (19”)
• Seat height with 2” Haks - 508 mm (20”)
• Seat width - 508 mm (20”)
• Seat depth position 1 - 457 mm (18”)
• Seat depth position 2 - 508 mm (20”)
• Armrest height - 180 mm (7.1”)
• Overall width - 800 mm (31.5”)
• Overall height - 1115 mm (43.9”)
• Overall length - 940 mm (37”)
• Rise height to front of chair Standard - 545 mm (21.5")
• Rise height to front of chair Medium - 620 mm (24.4")
• Rise height to front of chair Flat - 710 mm (28")
• Total length fully reclined - 1660 mm (65.4”)
• Chair to wall/ furniture - 605 mm (2")
• Safe working load - 160kg
• Chair weight - 68 kg

Small

·        Seat Height: 406mm

·        Seat Width: 457mm

·        Seat Depth: 457mm or 508mm

·        Armrest Height: 180mm

·        Overall Height: 1092mm

·        Overall Width: 711mm

·        Overall Length - Upright Position: 940mm

·        Overall Length - Recline Position: 1702mm

·        Chair to Wall/Furniture: 457mm

·        Safe Working Load: 130kg
