Empulse R10 Power Assist

The Empulse R10 power assist attaches via a docking arm to manual wheelchairs featuring box‑frame tubing. It operates via a thumb throttle and also includes automatic and constant‑speed modes, ensuring smooth propulsion with minimal effort

Powered by a 36 V/5 Ah lithium-ion battery, it delivers up to 12 km range on a full charge. The 250 W motor offers three speed settings (1.5 km/h, 3.0 km/h, 4.5 km/h) and can handle slopes up to 8°. The lightweight drive wheel and backpack mounted battery/controller fold easily with the wheelchair for convenient transport and storage.

Key features

• Lightweight at just 6.9 kg – one of the lightest power assist units available, making it easier to lift, transport and handle
• High-performance support – travels up to 12 km, climbs slopes up to 8°, and supports users up to 130 kg

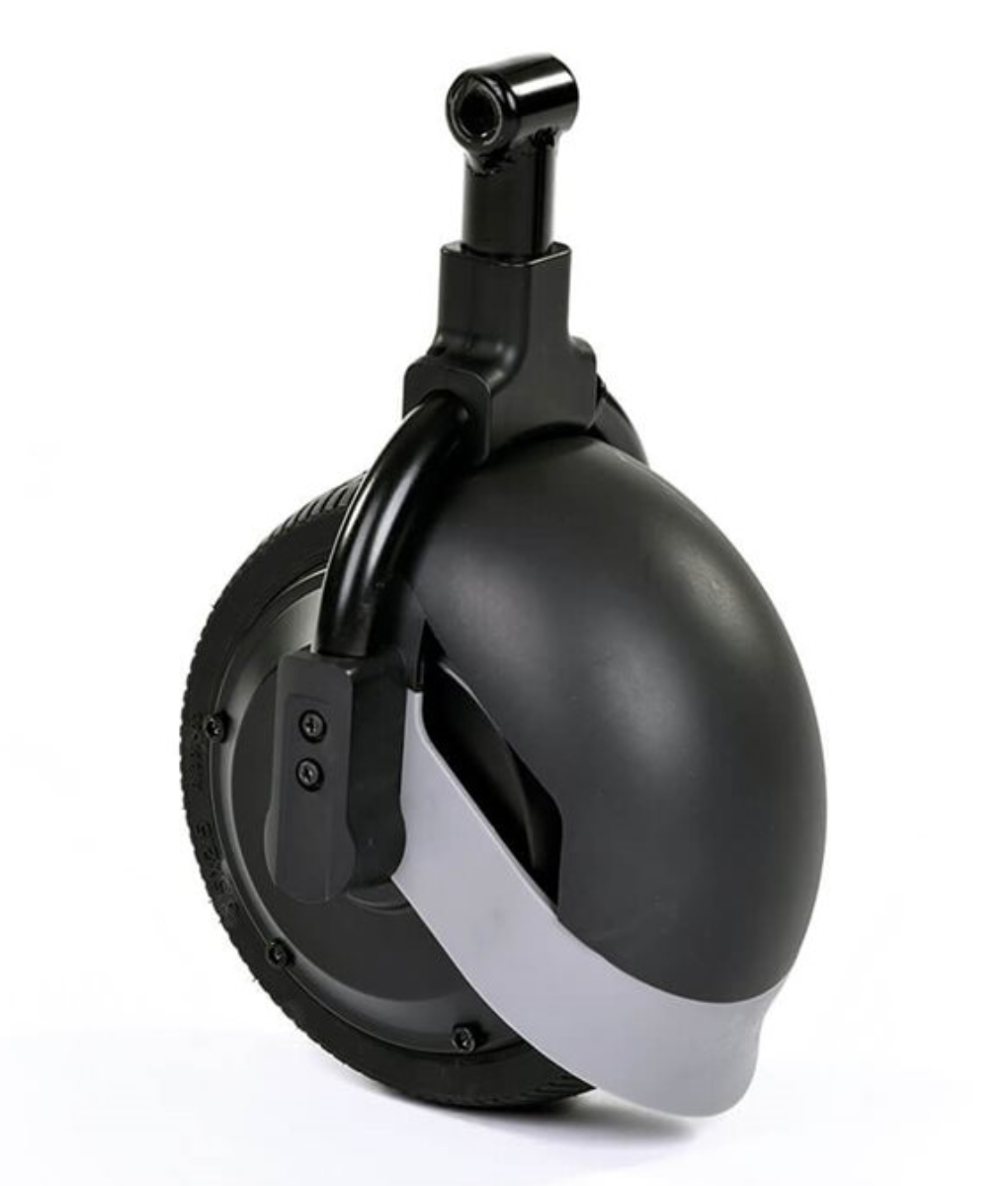

• Reliable and durable design – includes a solid 6" wheel, lithium-ion battery, and 3-year motor warranty for long-term confidence and performance
• Constant Speed Assistance – maintains steady movement with the press of a button, making it easier to manage inclines up to 8° without added strain
• Automatic Assistance mode – senses motion and delivers matching propulsion to reduce pushing effort and extend battery life, with no need to press a button. (Automatically matches attendee walking pace)
• Distance detection safety sensor – automatically pauses propulsion when no grip is detected on the push handle, ensuring safe, controlled movement at all times

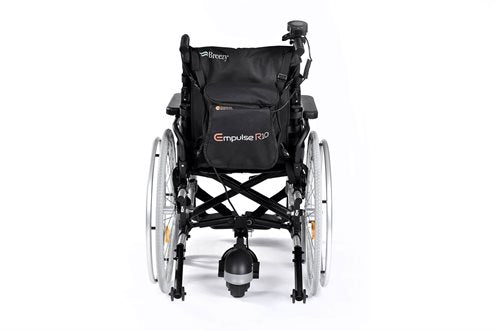

• Modern, compact backpack – designed for easy transport and quick attachment, compatible with most wheelchair frames
• Diverse wheelchair compatibility – fits most manual wheelchairs with box or similar frames, round tubing (20 mm – 28 mm), seat widths (380 mm – 520 mm), rear seat heights (400 mm – 580 mm), and frame-to-ground clearance of 180 mm – 220 mm
• Quick and simple attachment – docks easily using a small pin with minimal added weight, making setup and removal fast and straightforward
• Quick-release of control unit – allows safe, easy transport without unplugging cables, saving time and reducing handling effort

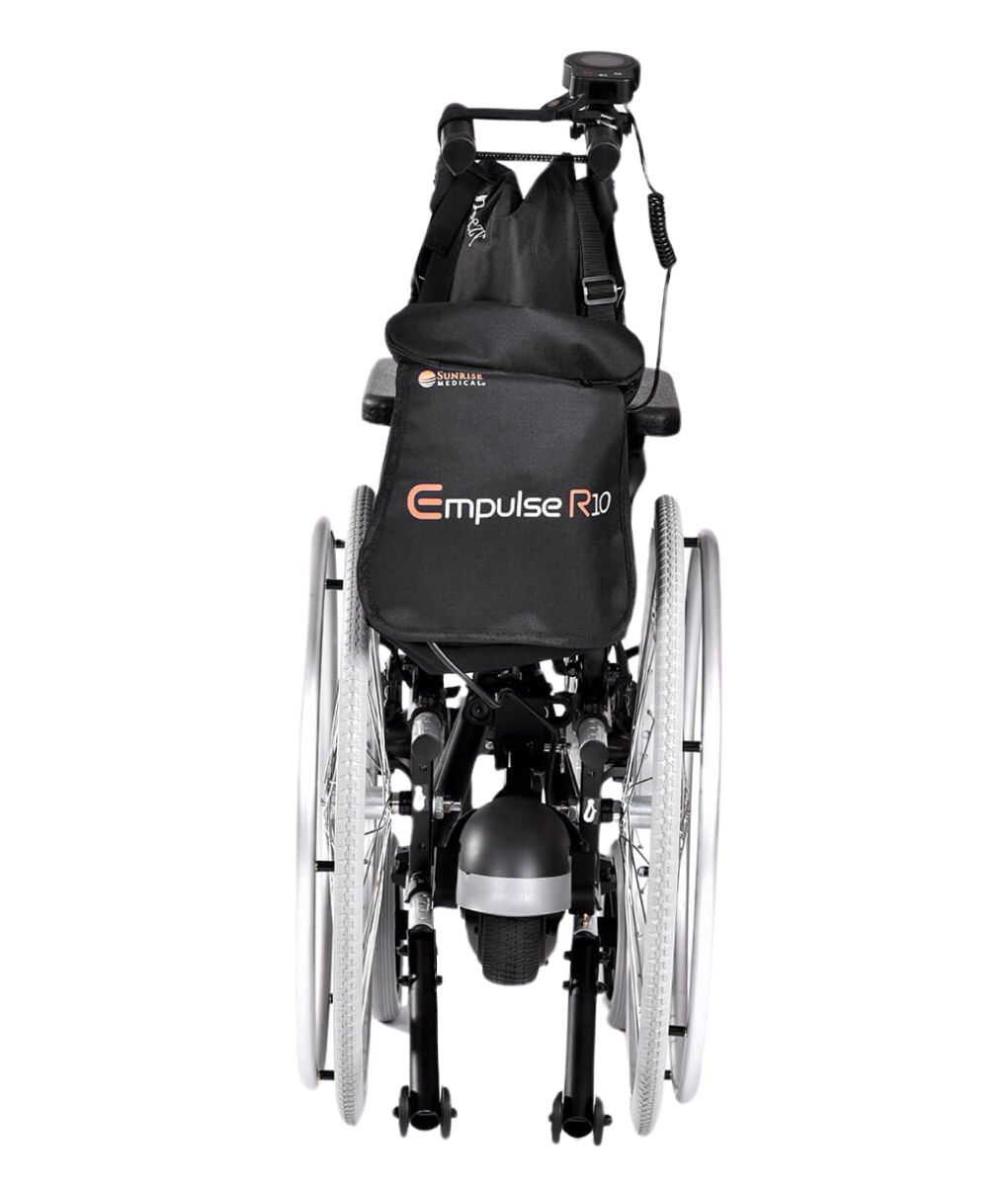

• Folds easily with wheelchair – the R10 can stay attached when folded, making storage and transport more convenient
• Simple thumb throttle control – intuitive operation with three easy push-button speed settings for tailored support

Specifications
